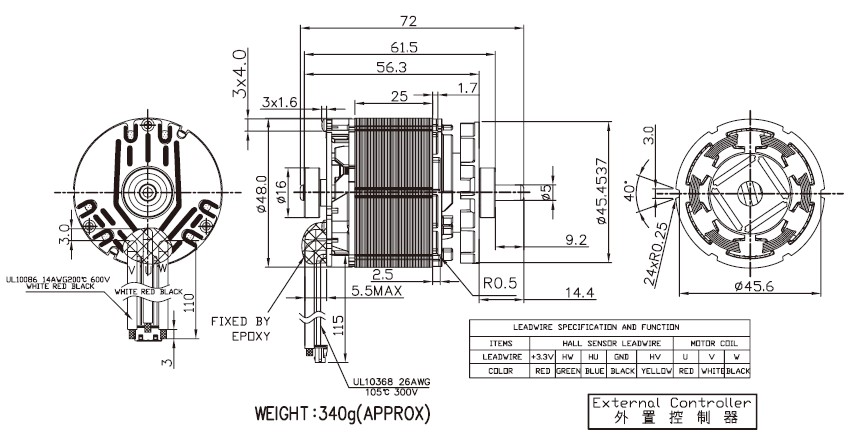

BL48F25无刷电机 /圆型铁壳
用途： 电动工具
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

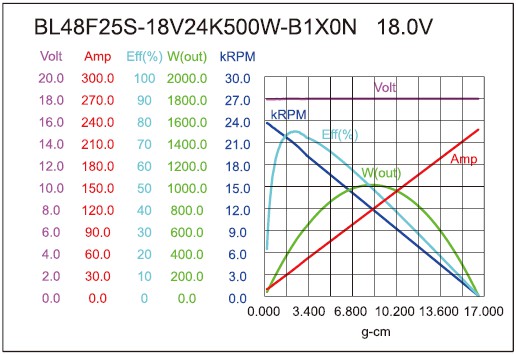

| BL48F25S-18V24K500W-B1X0N | 14.4-21.6V | 18.0V CONSTANT | 24000 | 6.40 | 20747 | 38.34 | 2390 | 234.31 | 510.07 | 76 | 228.74 | 16600 | 1630 |

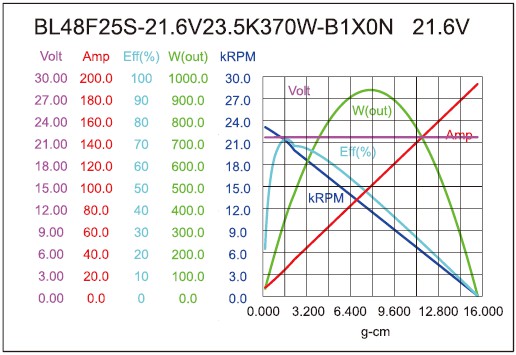

| BL48F25S-21.6V23.5K370W-B1X0N | 14.4-21.6V | 21.6V CONSTANT | 23500 | 4.60 | 21186 | 25.60 | 1730 | 169.61 | 376.40 | 72 | 193.89 | 15700 | 1540 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
