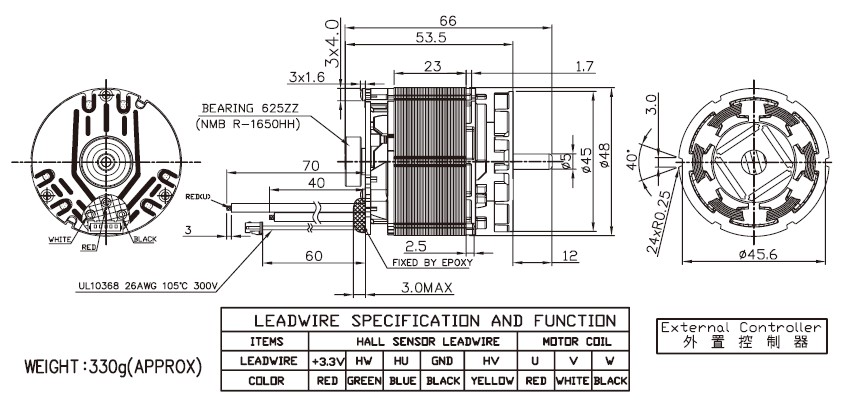

BL48F23无刷电机 /圆型铁壳
用途： 电动工具
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

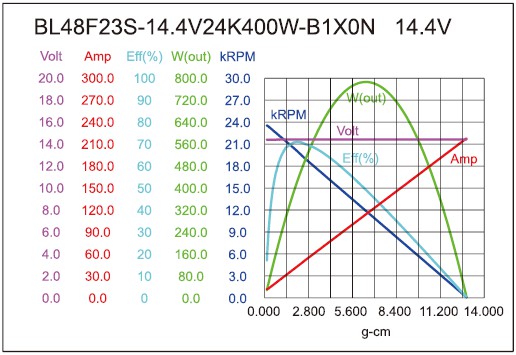

| BL48F23S-14.4V24K400W-B1X0N | 14.4-21.6V | 14.4V CONSTANT | 24000 | 7.80 | 20243 | 41.37 | 2010 | 197.06 | 417.44 | 72 | 218.85 | 12910 | 1270 |
| BL48F23S-14.4V24K400W-B1X0N | 14.4-21.6V | 18.0V CONSTANT | 23000 | 4.70 | 20450 | 33.50 | 2160 | 211.76 | 453.84 | 76 | 210.75 | 15750 | 1540 |
马达的出轴长度及性能参数，EMC 对策可依客人要求做调整，详情可询问相关业务人员。
